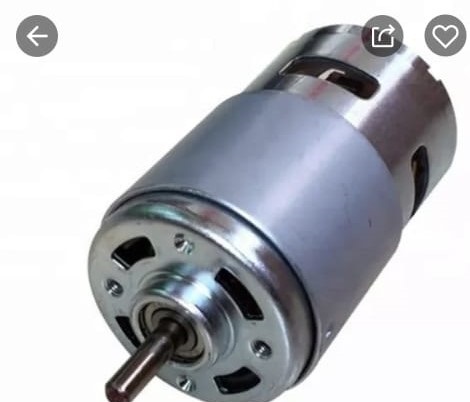

Front and rear double ball bearings, DC 12V-24v
voltage universal,Large torque.Cost-effective,Is
the power source of DIY power tools. The starting
current is low, only need 12V2A or more power to
start.
Measured parameters (for reference):
12v no-load current 0.92A blocking current 2.6A
no load 10000 rpm, load 8800 rpm.
24vNo loadCurrent 1.46A blocking current 2.9A
vacant 20000 rpm, load 17600 rpm.
Motor step height: 4.5mm
Motor step diameter: 17.5mm
Shaft diameter: 5mm shaft
Output shaft length: 16mm (shaft length above
the step level)
Motor diameter: 42mm
Motor length: 66.5mm
Motor tail step height: about 4.5mm
Pitch of mounting hole: approx. 29mm
Mounting hole diameter: M4 screw
Motor weight: about 350g
