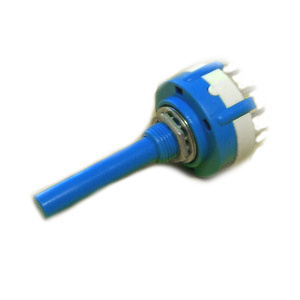

(image for) Rotary Switch 4-pole 3-way, pcb Mount (SWR504)
Rotary Switch 4-pole 3-way, pcb Mount (SWR504)

Rotary Switch 4-pole 3-way, pcb Mount (SWR504)

R80.50

High quality rotary switch with 30° indexing.
Four-pole, 3-way switch with adjustable end-stop to reduce number of ways.
Contact action non-shorting (break before make).
Contacts are silver-plated.

Outside diameter 26mm.
Overall length 57mm.
Bush length 8mm.
Spindle 28mm long, 6.25mm diameter.
Solder tags.
Requires 9.5mm diameter mounting hole.

Specification

Contact rating: 0.3A 125V AC, 0.15A 250V AC
Contact resistance: 0.02 ohms max.

Add to Cart:

  • Model: SWR504
  • Shipping Weight: 0.012 lbs
  • 8 Units in Stock
