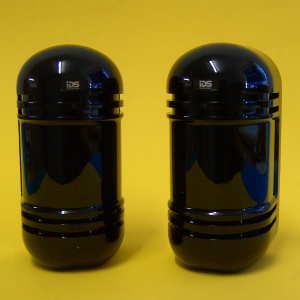

IR Outdoor Beam, 60/120m (SCL92S)

An infra red beam break set, designed for indoor or outdoor use and ideally suited for use in a various applications, such as intruder detection or motorised security gates.

The system incorporates two simultaneous cut off detection beams, eliminating the risk of false triggering. Maximum range is 60m outdoors, 120m indoors.

Suitable for use in car parks, alarm systems, door entrances, overhead doors and gate/garage motors.

Kit includes transmitter unit and receiver unit and installation instructions.

• Max range 60m (outdoors), 120m (indoors)
• 2 simultaneous cut off detection beams
• Adjustable response time of 50-700msec
• Excellent immunity to fog & mist
• Sensitivity monitoring output terminal
• Optical axis horizontal adjustment of 90°
• Optical axis vertical Adjustment of 10°
• 3 year warranty

Alarm Output: Relay Contact, 30VAC/DC, 0.5A
Power Supply: DC 10.5 to 28V
Power Consumption: 40-65mA
Temperature Range: -25°C to +55°C
Tamper Output: NC Relay Contact,30VAC/DC, 0.5A
Weight: 600g each (transmitter and receiver)
Dims: 170 x 82 x 76mm

Suitable ''Pole Mount Brackets'' for use with this IR Outdoor Beam set is available as Order Code SCL95S.
